Higher Breaking Load | Superior Wear Resistance | Heavy Hoisting & Haulage
Compacted wire rope (also called drawn wire rope or Warrington-Seale compacted) is a wire rope in which the outer wires of each strand have been drawn through a die after stranding, compressing and reshaping the wires to fill voids between them. This compaction process increases the metallic
cross-section of each strand by 10-20% within the same overall rope diameter — delivering a higher breaking load, better contact area on drums and sheaves, and improved resistance to abrasion and crushing.
Compaction increases the metallic fill factor, which means a compacted rope achieves a 10-20% higher minimum breaking load compared to a conventional rope of the same nominal diameter.
The flat, smooth outer surface of compacted wires creates a larger contact area on sheaves and drums
— distributing load more evenly and significantly reducing wear on both the rope and the machinery.

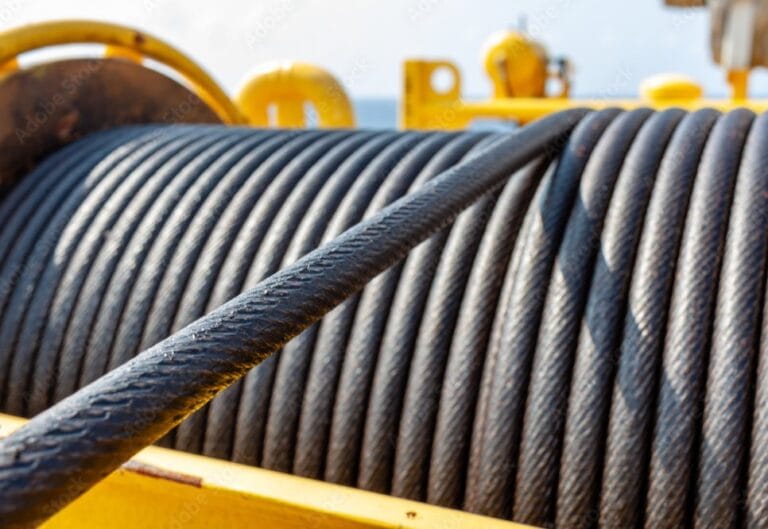

Compacted strands are stiffer in the radial direction, making the rope more resistant to crushing when spooled under tension on multi-layer drums.
Preferred for applications where maximum strength-to-diameter ratio is critical — heavy hoisting cranes, dragline ropes in open-pit mining, haulage systems, and deep shaft sinking.
Yes. Compacted wire rope typically achieves 10-20% higher minimum breaking load than a conventional wire rope of the same nominal diameter, due to the increased metallic cross-section from the compaction process.
In most cases yes, as the outer diameter is the same as the standard rope it replaces — but always verify your crane drum groove dimensions as the compacted rope’s different surface profile may require confirmation with the crane manufacturer.
Yes. Drilift supplies Teufelberger-Redaelli compacted wire rope from UAE stock in Ras Al Khaimah. Contact us with your diameter, lay type, and length requirement.
